Toshiba JSW Power Systems Private Limited (TJPS), Chennai has modern machine tools, large fabrication, automated welding, massive assembly, high-speed balancing and inspection facilities which it will now extend to other heavy manufacturing industries for manufacturing of high-precision equipment in India with Japanese quality assurance.
TJPS with advanced innovative technology offers topmost quality, affordable, reliable, or sustainable energy and timely deliverable to meet client requirements. We have the courage, passion, diversity and resourcefulness needed to deliver that promise…wherever and however the world needs it.
1. HIGH PRECISION MACHINING CENTRES

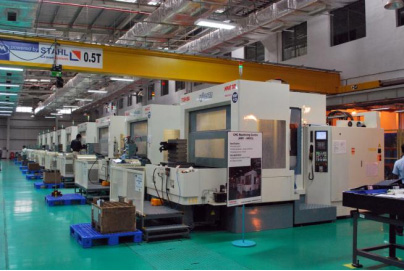

Toshiba JSW has a vast integrated air-conditioned machine shop for machining centres, which consists of Horizontal machining centre with multiple pallets and Vertical machining centre with rotary unit.
Horizontal Machining Centres
Stroke (XYZ)
- 1000x850x750mm
Rotating speed
- 4500 rpm
Vertical Machining Centres
Stroke (XYZ)
- 610x280x1150mm
Rotating speed
- 8000 rpm
2. MEDIUM MACHINERIES
Toshiba JSW has the machineries such as Turner, Miller and Horizontal borer for making convenient of medium sized parts
Turn Miller
Component height
- 3700mm
Special Attachments
- Milling head, Right angle and Vertical facing head

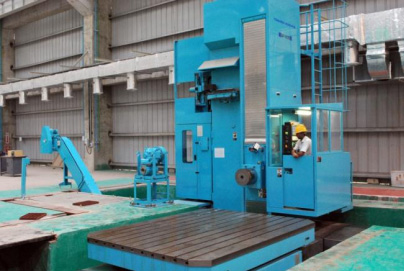

Horizontal Borer
Stroke (XYZ)
- 6000x2500x1500mm
Quill stroke (W)
- 1000mm
Special Attachments
- Universal head
Horizontal Lathe
Distance between centres
- 3000mm
Swing over cross slide
- 710mm
3. LARGE MACHINERIES
Toshiba JSW has high precision large machineries with material handling capacity of 200MT cranes for Turning, Gantry Milling and Horizontal Boring.

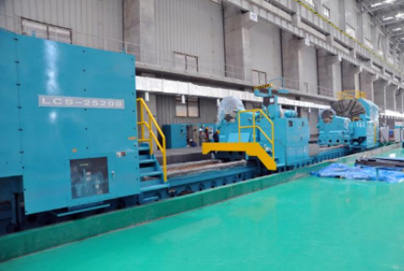

Large Lathe
Distance between centres
- 20000mm

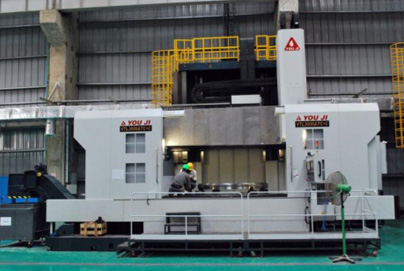

Turn Miller
Component height
- 7000mm
Special Attachments
- Snout milling head, Right angle head, 5 axis head with servo
Horizontal Borer
Stroke (XYZ)
- 24000x6000x1200mm
Quill stroke (W)
- 1000mm
Fixed Table size
- 12000x5000mm
Rotary table size
- 9000x6000mm
Special Attachments
- Right angle head, Universal head, D’andrea

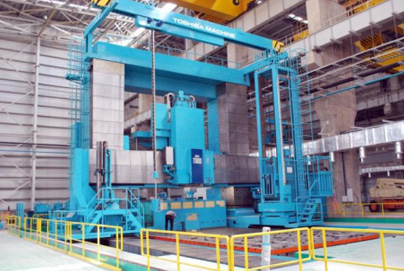

Gantry Miller
Stroke (XYZ)
- 10000x7500x2300mm
Quill stroke (W)
- 4000mm
Table size
- 10000x6000mm
Special Attachments
- Snout milling head, Right angle head, 5 axis head with servo, Vertical D’andrea and Horizontal D'andrea, Ejector drilling
4. AUTO MECHANISED FABRICATION
Toshiba JSW has equipped with state of the art fabrication facilities, starting from cutting to painting.

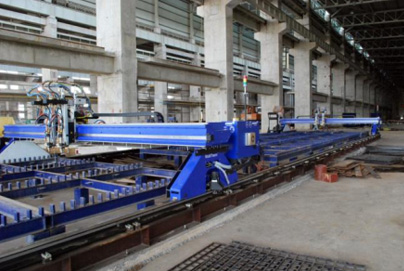

GAS CUTTING
Cutting thickness
- 300mm (max)
Capacity
- 300mm/ min (t 50mm)

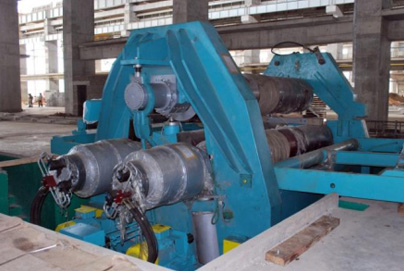

ROLLING
Hydraulic press
- 200 bar
HYDRAULIC PRESS
Capacity of the ram
- 2500MT
Working pressure
- 200 bar
Approach speed
- 100mm/ sec
Ram movement
- Down streaming
SR FURNA
Heating mode
- LPG Gas fired
Furnace size
- 11000x7000x5000mm
Operating temperature
- 625deg
Maximum temperature
- 900deg

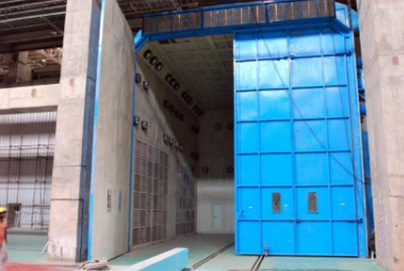

SHOT BLASTING CHAMBER
Booth size
- 12500x9000x6500mm
Wind velocity
- 0.28m/ sec
Air required
- 14200NI/ min
Blast capacity
- 15-19 Sqm/ hr
PAINT BOOTH
Booth size
- 12500x9000x6500mm (731 cubic meter)
Wind velocity
- 0.50m/ sec
5. MASSIVE ASSEMBLY
Toshiba JSW has huge assembly stations for doing various kind of assemblies which can handle smaller to large size components.
Facility includes advanced equipment that can perform assembly, hydro test, polishing, lapping and grinding, also includes special processes like brazing, shot peening, spot welding and riveting of parts as per applications.

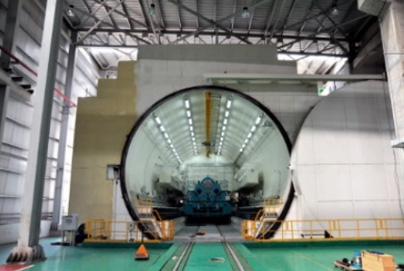

6. HSB/ LSB
Toshiba JSW has the balancing facility, to get optimum performance of the machines and also it reduces/ eliminates the field balancing requirement.
HSB
Rotational speed
- 4500rpm
LSB
Rotational speed
- 40rpm ~ 1700rpm (depends upon rotor weight and bearing span)
